A Multitool for Industry

With the Augmented Reality Software UBIK, Augmensys provides a powerful tool for the entire industry – branch-independent and application-oriented. UBIK accompanies an industrial plant already throughout the paperless commissioning process, directly at the construction site. Many different data sources are not a problem anymore, since they are seamlessly consolidated for efficient use. Through the whole life cycle of a plant (construction, commissioning, operation and maintenance, shutdown management) UBIK offers an intuitive, mobile and channelled access to all the digital systems in the background of a plant, for inspectors, maintenance workers, engineers and operators. The possibility to work mobile with the entire data asset of a company, edit information right on site and send back photos and voice memos that automatically end up in the right systems, creates a highly effective work environment for anyone who has work to do in the plant. But UBIK doesn’t only identify what the user sees, it also helps people in the field finding what they are looking for. Using Augmented Reality Tags and its unique navigation functionality, UBIK directs external staff and subcontractors through the plant on efficient and safe routes.

Features & Use Cases

Augmented Reality

Augmented Reality allows to superimpose objects of a plant and all its underlying, existing data directly in the live-feed of the mobile device´s camera.

Navigation / Maps

Augmented Reality supported navigation guides workers through the plant on safe and efficient routes.

Commissioning

✓ Guiding/navigating engineers to relevant equipment/locations on site

✓ Executing commissioning checks (E&IC and mechanical) on site

✓ Generateing punch-points incl. photo via mobile

✓ Clearing punch list items when sorted out

✓ Commissioning report will be generated automatically

Use Case

Tracking & Positioning

Identify objects in the plant via QR codes, barcodes, tag signs (OCR), RFIDs, ID markers, image recognition, …

Positioning of the mobile device in the plant via various tracking technologies such as markers, W-Lan or iBeacons

Maintenance

✓ Executing planned/preventive maintenance actions/tasks/work packages

✓ Supporting predictive maintenance concept e.g. Push work orders to field workers in case of failure prediction

✓ Generating events/notifications

Use Case

Multi-Client-Technology

✓ Native for Android & Win10

✓ Crossplattform for Android, Win10 & iOS

✓ Web client as browser application

✓ Smart glasses on Android

✓ HoloLens

Shutdown-Management

✓ Shutdown preparation (scoping of work packages)

✓ Mobile Shutdown-progress-reporting sent back to planning system

✓ Reporting of extra work (for contractor) incl. release workflow

✓ Documenting of cleaning activities (vessels, heat exchangers,..)

✓ Disconnecting, reconnecting, and commissioning of instruments

✓ Punch-List management

✓ Online progress information available via web-client

Use Case

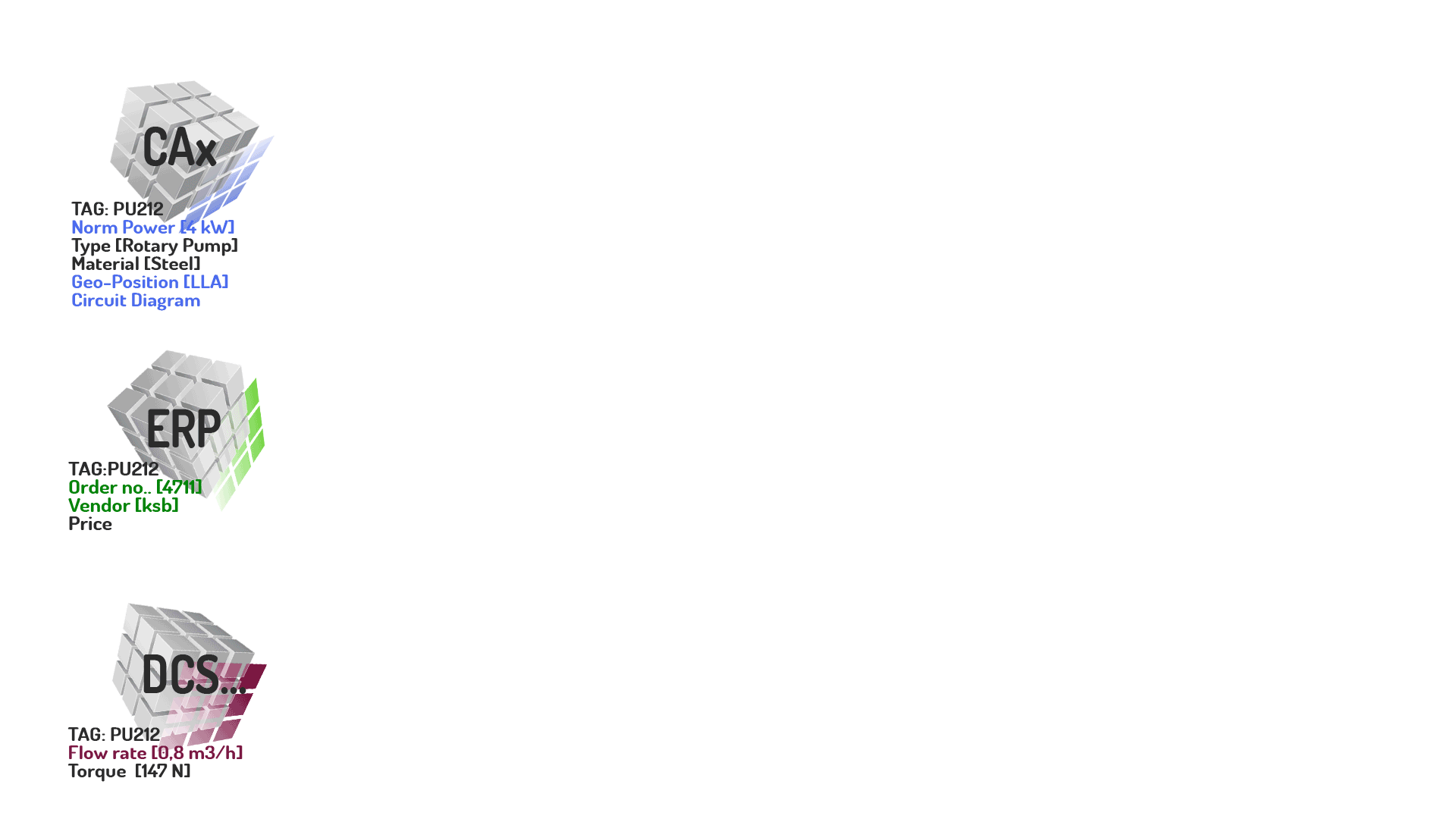

Data Consolidation

Consolidation of data and documents to existing expert systems (CAE, ERP, DCS, DMS, MES, …) enables a complete object data record via a single user interface.

Data can be changed, supplemented or created and synchronized back to the expert systems.

Inspection

✓ Executing regular and mandatory, daily operator inspection rounds

✓ Gathering operational data like local readings (level, pressure,..)

✓ Generating events/notifications including photos/videos in case of faults, malfunctions or open issues on site

Use Case

Technical Documentation

Documents of any kind (files or URL links) can be used from the connected source systems on mobile device.

Important messages, data and documents can be “pushed” to the mobile devices in the system, even isolated from the Internet.

Support

Video support enables help from internal and external experts from distance, respectively worldwide. Directly at the plant object on site.

Features

Augmented Reality

Augmented Reality allows to superimpose objects of a plant and all its underlying, existing data directly in the live-feed of the mobile device´s camera.

Navigation / Maps

Augmented Reality supported navigation guides workers through the plant on safe and efficient routes.

Tracking & Positioning

Identify objects in the plant via QR codes, barcodes, tag signs (OCR), RFIDs, ID markers, image recognition, …

Positioning of the mobile device in the plant via various tracking technologies such as markers, W-Lan or iBeacons

Multi-Client-Technology

✓ Native for Android & Win10

✓ Crossplattform for Android, Win10 & iOS

✓ Web client as browser application

✓ Smart glasses on Android

✓ HoloLens

Data Consolidation

Consolidation of data and documents to existing expert systems (CAE, ERP, DCS, DMS, MES, …) enables a complete object data record via a single user interface.

Data can be changed, supplemented or created and back synchronized to the expert systems.

Technical Documentation

Documents of any kind (files or URL links) can be used from the connected source systems on mobile device.

Important messages, data and documents can be “pushed” to the mobile devices in the system, even isolated from the Internet.

Use Cases

Commissioning

✓ Guiding/navigating engineers to relevant equipment/locations on site

✓ Executing commissioning checks (E&IC and mechanical) on site

✓ Generateing punch-points incl. photo via mobile

✓ Clearing punch list items when sorted out

✓ Commissioning report will be generated automatically

Use Case

Maintenance

✓ Executing planned/preventive maintenance actions/tasks/work packages

✓ Supporting predictive maintenance concept. E.g. Push work orders to field workers in case of failure prediction

✓ Generating events/notifications

Use Case

Shutdown-Management

✓ Shutdown preparation (scoping of work packages)

✓ Mobile Shutdown-progress-reporting sent back to planning system

✓ Reporting of extra work (for contractor) incl. release workflow

✓ Documenting of cleaning activities (vessels, heat exchangers,..)

✓ Disconnecting, reconnecting, and commissioning of instruments

✓ Punch-List management

✓ Online progress information available via web-client

Use Case

Inspection

✓ Executing regular, mandatory, daily operator inspection rounds

✓ Gathering operational data like manual local readings (level, pressure,..)

✓ Generating events/notifications including photos/videos in case of faults, malfunctions or open issues on site

Use Case

Support

Video support enables help from internal and external experts from distance or worldwide. Directly at the plant object on site.

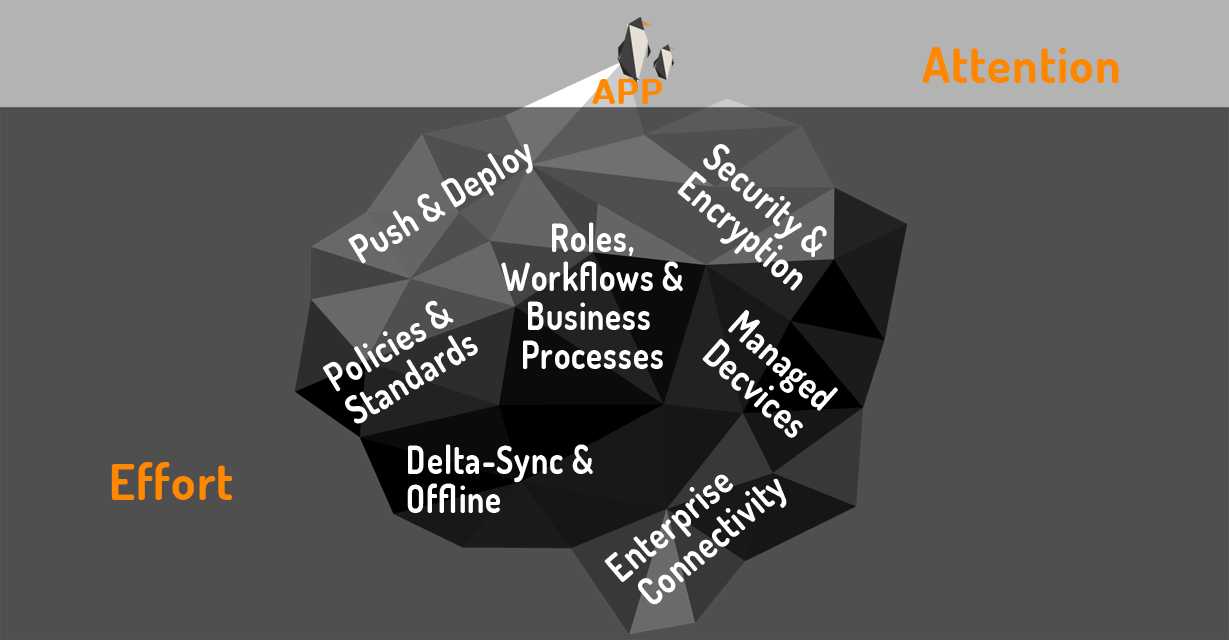

The tip of the Iceberg

We see industrial mobile solutions as a kind of iceberg, where the App is just the tip that sticks out of the water. The basis of UBIK, the huge part of the iceberg under the water, is therefore bigger and more powerful.

For a productive solution it is much more important to have the data and the data provision under control and to support it with Augmented Reality features, not the other way around. Metaphorically speaking, one should not take the iceberg out of the water and turn it upside down, because that will certainly not lead to a stable solution. We always start with defining the use cases together with our customer, then we consider the core needs and only then we are leveraging different features and tools to fulfil our customer’s wishes in the most reasonable and intuitive way. Augmented Reality is just one of these tools, albeit, of course, with a huge potential for the future.

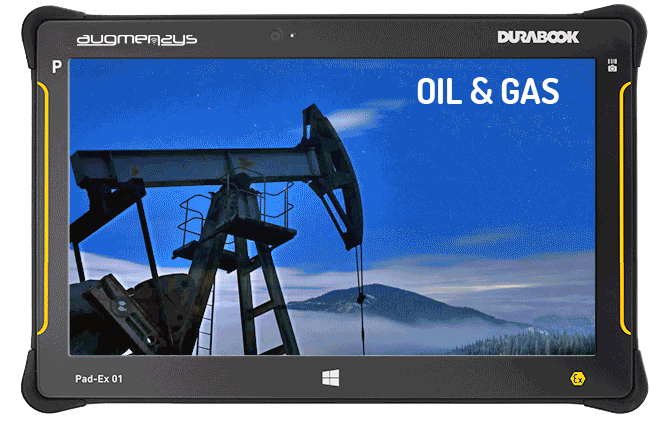

Industries

We have set ourselves the goal of enabling the industrial user to handle the enormous amount of data in a company, ideally independent of his or her previous knowledge. Achieving this target creates immediate value for the user, but it also protects the company´s investment: The more purposeful the costly created data is deployed, the more efficient work will be performed – no matter in which industry.

MOBILE

Mobility is the basic principle of our solution. Wherever you need information, UBIK never lets you down – in the conference, in the plant on site, while maintaining…

FAST

Based on the latest software architecture, UBIK is able to manage even big data with high performance.

SIMPLE

AR-based usability concepts enable intuitive operation. Intense training sessions are completely eliminated.

COST-NEUTRAL

Thanks to its lean and smart implementation UBIK generates ROI already after a short time and thus finances the investment – guaranteed!

CLEAR

Systematic consolidation of information from multiple IT-Systems brings clarity, reduces complexity.

ACCEPTED

Due to the speed, simplicity, clarity and mobility, UBIK is accepted immediatly from the management as well as from the users.

Editions & Packages

Our packages are always specially tailored to your specific needs. Here you can get a first overview
